Lo-tech ISA CompactFlash Board

Another PCB 🙂

Lo-tech ISA CompactFlash Adapter

I was contacted recently by the owner of a Sinclair PC200 (an XT class machine in an Atari ST style case) about my XT-CF boards, wondering if a custom board could be built for the machine, with its physical 50mm height restriction on its two ISA slots.  The quick answer to that is no, since the CompactFlash header is too big in either orientation, but I’d already been pondering on the idea of a super-simple PCB providing a 40-pin IDE header, based on the lo-tech 8-bit ROM board, so this seemed like a good opportunity to finish the design.

Lo-tech ISA CompactFlash Board: What is it?

A through-hole, small form factor 8-bit ISA adapter providing a 40-pin IDE header suitable for connection to a separate IDE to CompactFlash adapter (available cheaply on eBay).  By using a 40-pin header instead of a CompactFlash socket, home assembly of the device is made simple as all required components are 2.54mm pitch through-hole.

Other than the small form factor (and without any provision for a slot bracket), the PCB is a standard ISA card and can be used in any PC with an ISA slot.

New IDE Logic Implementation

Making an XT/IDE derivative in such a small PCB meant minimising the component count:

  • Whilst the XT-CF-lite was based closely on the original XT/IDE adapter, borrowing directly its OR and inverter gate design to provide IDE register access and IDE reset, with this new board this has been condensed into a single 74LS139.
  • Because of the 40-pin potentially cabled connection to the CompactFlash adapter, a buffer (74HCT245) is required, but with only 8-bit transfer mode supported (hence the CompactFlash designation), a 16-to-8-bit MUX isn’t required

Any CompactFlash or microdrive device should work with this adapter, and probably ATA-2 compliant hard drives (since 8-bit transfer mode is a requirement of ATA-2).

Extended Functionality

I wanted to include as much functionality as possible, so implementing the logic for IBM PC/XT Slot-8 compatibility (developed with the CPLD based XT-CF adapters) was a goal.  Although out of space on the ISA component side, the layout could accommodate a few SMT components on the ISA solder side: these are entirely optional, but when populated provide LED drive and Slot-8 functions.

The logic required to provide slot-8 functionality is straight-forward – it’s just an echo of MEMR or IOR when either the ROM or IDE ports (respectively) are selected, with an open-collector drive since other logic on the system board can also drive this signal (as I’ve written about before).  In this new board, this is implemented with a single 74LS33D quad NOR gate, the one spare gate being used to provide LED drive too:

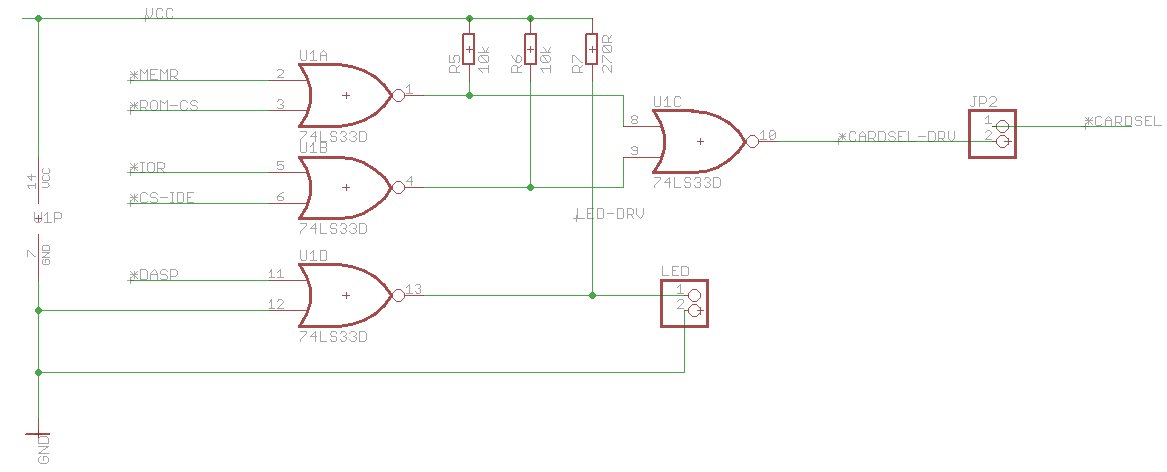

Lo-tech ISA CompactFlash Adapter SMT Logic

LED drive requires the SMT 74LS33D populated since CompactFlash devices provide only minimal activity LED drive current, which is likely already absorbed by LEDs on the required CompactFlash to IDE adapter.

The boards are fully supported by the XTIDE Universal BIOS (from build R545), with standard 8-bit PIO transfer mode and the enhanced performance BIU Offload mode just as with the XT-CF-lite.  The DMA transfer mode of the XT-CFv3 is not however supported.

Availability

ENIG (gold plated) rev.2 PCBs are available via the shop page.

Components will also be needed from your local electronics outlet such as Farnell, Mouser or Digikey – full Bill of Materials in the wiki.

Social tagging:

25 Responses to Lo-tech ISA CompactFlash Board

  1. David Galzerano says:

    Hey, James.. I’d love one of these to put into my Tandy 1000HX. While the XT-IDE v1 fits, it’s a TIGHT squeeze. The smaller footprint of this board would go much more nicely. Thanks!

  2. Jose I. Nieto says:

    Hi,

    I am amazed by your developments. I’m almost new to retro-computing, and stuck with hardware failures in an IBM PS/2 model 30 8086 (harddrive is borderline but floppy is al ost gone!) and a Compaq Deskpro EX 4/50 486(harddrive is dead, trying to find ISA IDE card).

    I would really love to get the new v1.1 PCB to try to get the IBM back to life. Please advise when ready. I am as bad with the solder as anyone can get, but recently I repaired a subwoofer KEF PSW2500, just by changing a bad capacitor.

    This will be a real challenge!

    Thanks for sharing your work and good luck.

    Regards.

  3. Heather Kent says:

    I’m interested in two of the v1.1 boards.

  4. Jose I. Nieto says:

    Get the PCB, great!

    But pardon me, how do i flash the thing?

    Dummie, sorry….

    • james james says:

      Hello! You can find the flashing utility here: http://www.lo-tech.co.uk/wiki/Lo-tech_XT-CF_flash_utility

      For the BIOS, you need a recent XTIDE Universal BIOS build, say r550 or newer. I’ll be posting an archive with everything pre-built within the next day or two.

      • Andy D says:

        Hi James, I built up my ISA CompactFlash board today (including the SMT components – a first for me) and it’s all up and running great in my IBM 5155, thank you so much! I did however run into a snag with the BIOS, the Beta BIOS you have on the Lite page worked OK but I wanted to config the latest version so I built rev. 554 – unfortunately this correctly IDs the master CF but then just hangs. After looking at the SVN log I reverted to rev. 551 and this works great, so I think the recent boot/interrupt changes have caused an issue, at least for my machine.

  5. Jerry Cotton says:

    The A29010 seems to be an EOL product with scarce availability.

    • james james says:

      Thanks, availability of all these 5V DIP chips seems to come-and-go. The board can used any of: AMIC A29 010/020/040 or SST 39SF 010/020/040. Hope that helps!

  6. Al Hartman says:

    I think I found and ordered all the parts. Just waiting for everything to arrive and put it all together.

    eBay had CF to IDE adapters very cheaply (under $2US), and Amazon has 16gb CF cards for about $13US.

    Considering my first Turbo-XT in 1982 had two 13mb Hard drives, 16gb will be plenty. I plan on using Matthew Reed’s TRS-80 Emulator on my XT to have it work as a TRS-80 clone as well.

  7. Al Hartman says:

    If you put in a V20 (as I plan to do), which version do you use?

  8. scott glassburn says:

    I am looking forward to assembling this

  9. chromedome45 says:

    Hey James, When you get some more of these let me know/Us. know. Would like to get 1

  10. Jose Ricci says:

    Hi James!

    Just finished to build my card this morning. It is up and running now! What a great peace of hardware for my 5150!

    Thank you!

  11. Gregor says:

    Hi James,

    Finally managed to build the card and test it on my Sincalir PC200…not sure what is wrong but would like to hear it from you…or somebody who experienced the same issues…I’ve connected a 256 Mb CF which doesn’t want to boot from…after the message ‘Booting C>>C’ I receive only a message ‘Error!’….but when booting via the floppy I cann access the C and D partitions….I also did the complete Fdisk setting-up of the CF on the PC200 (via floppy boot) but when trying to boot directly from CF (C partition is primary and formatted with /s) I cannot get it through….it just stands there….

    Any ideas what might be the issue?

    Thanks and a great piece of hardware!

  12. Federico says:

    Hi, I own a olivetti m24 (8088), will it work?

    • james james says:

      Hi, yes it should work with almost any PC with an 8-bit ISA slot.

      • Federico says:

        Don’t Boot on Olivetti M24.. in modern PC it’s ok the boot of the CF…
        https://goo.gl/photos/hXbefBLXhEFmUmp58

        • james james says:

          Hi Federico, the reason is that the boot sector on the card is not compatible with the CPU in the machine. See here for details, basically you need to re-create the MBR using DOS 6.22 FDISK /MBR (booted from a floppy) or completely erase the CompactFlash card with WIPEDISK utility and start again. Hope that helps!

          • Federico says:

            Hi , many thanks !
            I solved !
            From a modern PC, with the fdisk util of the dos 6.22 I created the partition (32Mb) and made it active. then run the command “fdisk / mbr”. restarted and formatted c: with the command “format c: / s”
            at this point the Olivetti M24 gave the message “missing operting system” .. first message gave no sign.. good sign!
            formatted the drive c: with dos 3.3 with the command “format c: / s”
            allright !!
            I hope this can be a help to others

  13. Robert says:

    Hi James!

    Can it be used with a AT 286 and 386 or can i just connect a CF to IDE converter to my existing 16bit ISA IDE controller?

    Many Thanks!
