ISA CompactFlash Adapter and SD Cards


The Lo-tech ISA CompactFlash kit makes it possible to boot a vintage PC from a CompactFlash card in a straight-forward through-hole soldering project by means of a cheap CompactFlash-to-IDE adapter (like this). Whilst there’s long been interest in a similar SD-Card storage option, CompactFlash has always been just so much easier since it was designed for the ISA bus and supports an 8-bit transfer mode natively.

The development process for the (forthcoming) Lo-tech 8-bit IDE Adapter meanwhile involves testing as many different drives as possible, and it was perplexing that an SD-Card-to-IDE adapter just wasn’t detected, given that all the real hard-drives so far tested worked OK. This got me thinking.


In hacking the XT-IDE Universal BIOS (XUB) to work with the new 8-bit IDE adapter, I’ve simply re-used the existing XT-CF ‘BIU’ controller type (designed for CompactFlash and so making use of the 8-bit transfer mode) and bypassed the error checking on the 8-bit mode set command. This allows the disk to stay in 16-bit transfer mode (because generally 8-bit transfer mode isn’t supported by real hard-disks) and leaves the magic to the hardware on the 8-bit IDE Adapter. This works OK, but… what if the SD-to-IDE adapter actually supported 8-bit transfer mode?

In that case, the BIOS would set 8-bit transfers, then only ever retrieve half the sector data interspersed with random garbage, since the logic on the new adapter would be storing the high 8-bits which we’d just configured the device not to present. So could the SD-to-IDE adapter work on the ISA CompactFlash adapter?

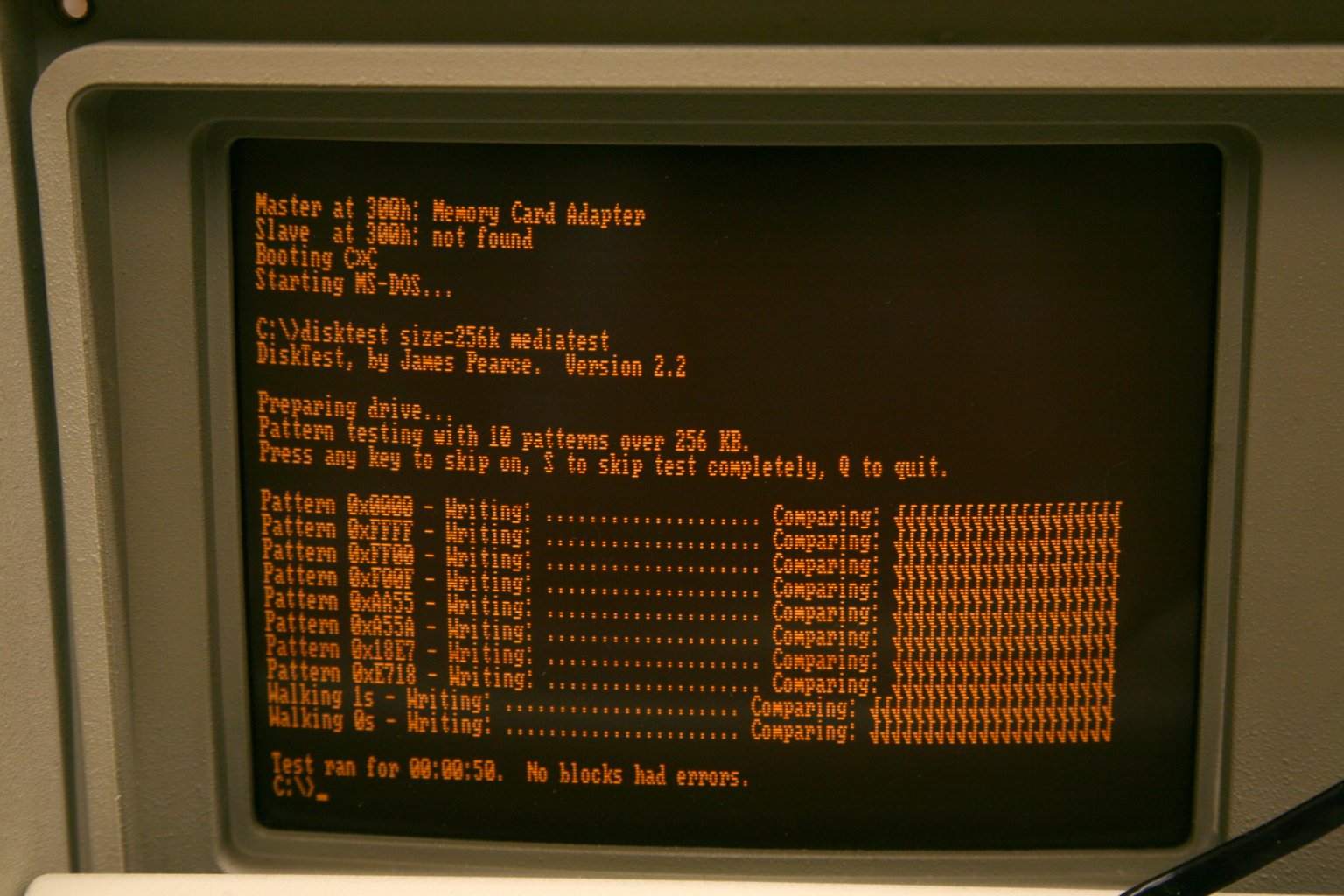

Lo-tech ISA CompactFlash Adapter booting from an SD card interfaced via an FC1306T based adapter

FC1306T (GP)

The SD-Card adapter I was testing was based on the FC1306T chip, and the answer is right there in the datasheet: it’s actually an SD-to-CompactFlash adapter, “Fully compatible with CFA (Compact Flash Association) Standard”, which of course includes 8-bit transfer mode.

FC1306T based adapters seem to be in plentiful supply – in header, cable or slot-mount types, and any adapter based on this chip should work!

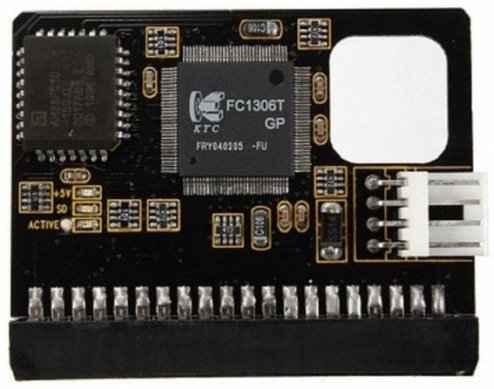

FC1306T based SD-Card to IDE adapters support 8-bit transfer mode

Performance wise these run at about the same speed as a basic CompactFlash card – around 200KB/s in an otherwise stock PC/XT. The slot-mount type need some care in mounting as they have PCI profile brackets, with the card mounted on the other side. I found it could be bent a little for use in an IBM Portable PC 5155 slot 8, providing externally accessible SD card storage and using a slot of otherwise limited use.


SD card throughput in an otherwise stock IBM Portable PC 5155

Lo-tech is in no way associated with the sellers of products on other sites linked to on this page (which are provided to provide an example of the types of products available).
