Z80 CPU Test Adapter

This board is designed to assist with troubleshooting of Z80 based systems by enabling easy measurement of all CPU signals.

Category:

Description

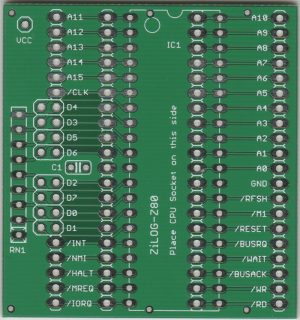

The Lo-tech Z80 CPU Test AdapterĀ is a simple board designed to assist with troubleshooting of Z80 based systems by enabling easy measurement of all CPU signals, and the option to present known wave-forms on all of the address bus CPU outputs.

See wiki page for more information.

HASL (lead free) finish. PCB only.



Additional information

Weight 20 g
