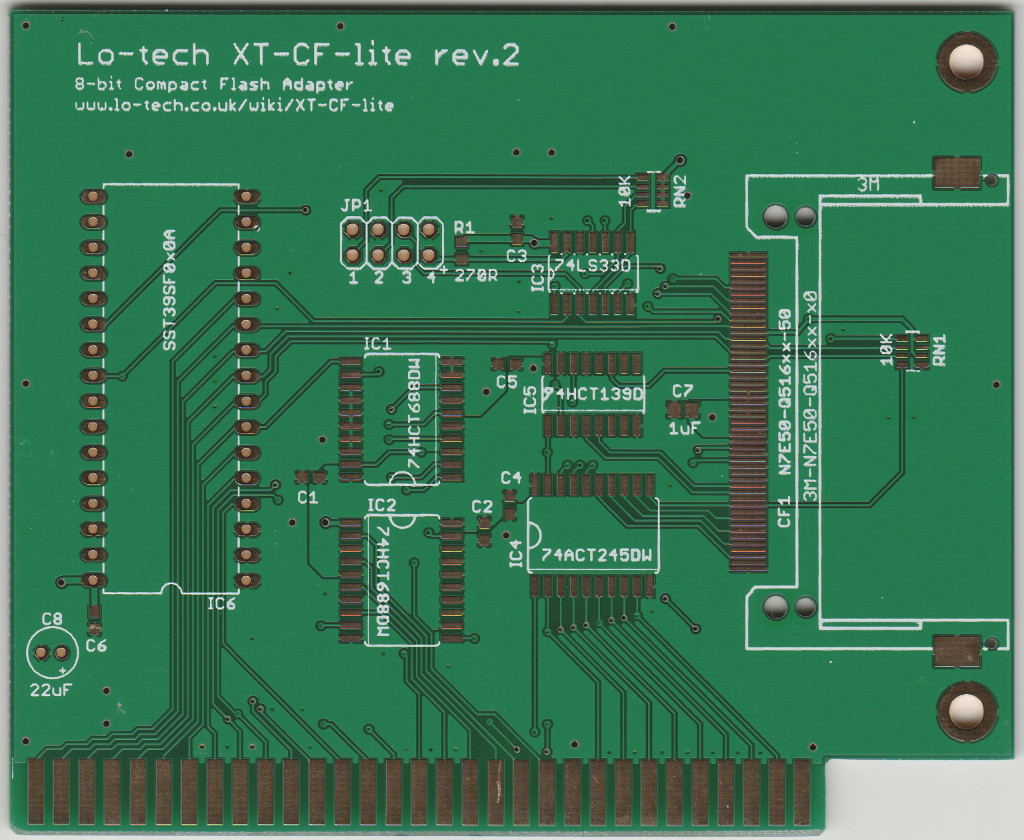

XT-CF-lite rev.2 PCB

£7.95

This adapter provides a single-slot bootable storage solution for PC/XT and PC/AT systems.

New version coming soon!

Out of stock

Category:

Product Description

Transform your IBM PC, PC/XT or compatible PC by replacing the MFM or RLL hard drive with a CompactFlash card!

This card provides bootable fixed disk storage and can reach 300KB/s in a 4.77MHz 8088 based IBM PC/XT when used with multi-sector capable CompactFlash cards or Microdrives. See blog entry and wiki page for full details.

ENIG finish. Note that this board requires SMT soldering skills – this can be performed with a standard temperature controlled soldering iron with a help of a quality syringe flux and desoldering braid. After construction, the BIOS can be programmed with the card installed in the target host – see product FAQ for details.

Note: PCB only. Bill of Materials is provided in the wiki. ISA Slot Bracket can be printed at home or via a 3D fabricator using the STL file available here.

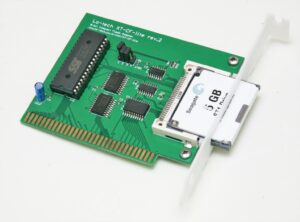

This product requires the separate purchase of components and home assembly; a soldering iron, solder and flux are needed to assemble the adapter. Image of assembled board is provided for reference.

Additional Information

Weight 30 g
