Dangerous Prototypes XT-IDE Boards

From Lo-tech Wiki
Jump to navigation Jump to search

The Dangerous Prototypes 'V1' boards took the original XT-IDE design and ported some of the functionality into a small Xilinx 9500 series CPLD. Because of short supply of 5V parts, the design was modified to use a 3.3V CPLD experimentally, and after successful testing of this the design was then ported to an entirely 3.3V CPLD based implementation with the V2.

The CPLD reduces the component count (and hence cost), but many home assemblers are likely to be put off by the SMT components, although they are manageable with only basic tools.

BIOS

Any of the standard XT-IDE BIOS's can be used. Testing has been performed using the XTIDE universal BIOS, V1.15.

Varients

  • V1 - XC9572 CPLD with some 74LS series ICs, all SMT
  • V1a - Revised to use XC9572XL (3.3V); has errors
  • V1b - Corrected V1a; works well
  • V2 - TQFP-100 XC9572XL CPLD with no other ICs. See Dangerous Prototypes V2 Compatibility Notes

Resources

Version 1

  • The original cersion was never built, since the 5V XC9572 was discontinued before the board was finished
  • The v1 board was made, but wasn't cut correctly
  • The v1a board has a number of design errors, including 5 missing traces
  • The v1b board is sound. When constructed, a minor change to the CSEL header pin (pin 28) should be made to ensure drive compatibility.

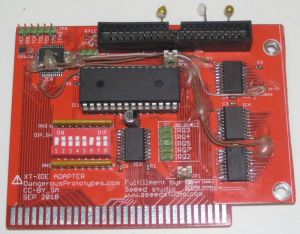

v1a


Farnell BoM:

Part(s) Description Package Value Qty Required Farnell Code
C1,C3,C4,C5,C7 Ceramic Capacitor C 0603 0.1uF 5 1833863
C2 Ceramic Capacitor Case C 47uF 1 9695664
C6 Ceramic Capacitor C 0603 1uF 10 1828801
DIP_SW 8-way DIP switch DIL SWITCH, DIL, 8WAY 1 9471596
IC Socket IC Socket DIP-28 SOCKET IC, DIL, 28WAY 1 1077330
IC1 EEPROM (64k as 8K x8) DIL-28 28C64 1 1095784
IC2 74HC688DW SOIC-20 74HC688DW 1 1740268
IC3, IC4 74HCT573D SOIC-20 74HCT573D 2 1201309
IC5 74HCT245DW SOIC-20 74HCT245DW 1 9591923
IC6 XC9572 72-cell 3.3v CPLD VQ44 XC9572XL-10VQG44C 1 1605849
IDE1 40-pin IDE Header MA20-2 HEADER, 2.54MM, BOXED, 2X20WAY 1 8395977
JP1, JP2, JP3, JP7 16-pin Jumper Header (cut for each) 2.54mm pitch HEADER, 2ROW, 16WAY 1 3418546
JP4 3-pin Jumper Header 2.54mm pitch HEADER, 1ROW, 3WAY 1 3417657
JP6 6-pin Jumper Header 2.54mm pitch HEADER, 1ROW, 6WAY 1 1187827
LED1 Activity LED 0805 LED, SMD, RED 1 1226389
R1,R2,R3,R4,R5,R6,R7 Resistor 0603 RESISTOR, 10KR, 0.1W, 5% 7 1469749
RN1, RN2 Resistor Network SIL9 RESISTOR NETWORK, 10K, ± 2% 2 9356819
VR1 Voltage Regulator SOT-23-5 MIC5205-3.3YM5 1 1663083

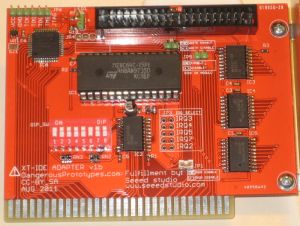

v1b


Enhancements over v1a:

  • Missing traces fixed
  • Seperate resistor for on-board and header-attached activity LED
  • Jumper to enable 5V CPLD to be used
  • Jumper header to enable connection of IDE Pin 20 to VCC for Disk-On-Module use
  • SMT resistor networks

Farnell BoM:

Part(s) Description Package Value Qty Required Farnell Code
C1,C3,C4,C5,C7 Ceramic Capacitor C 0603 0.1uF 5 1833863
C2 Electrolytic Capacitor Case C 47uF 1 1973276
C6 Ceramic Capacitor C 0603 1uF 1 1828801
DIP_SW 8-way DIP switch DIL SWITCH, DIL, 8WAY 1 9471596
IC Socket IC Socket DIP-28 SOCKET IC, DIL, 28WAY 1 1077330 or 1103852
IC1 EEPROM (64k as 8K x8) DIL-28 28C64 1 1095784
IC2 74HC688DW SOIC-20 74HC688DW 1 1740268
IC3, IC4 74HCT573D SOIC-20 74HCT573D 2 9592083
IC5 74HCT245DW SOIC-20 74HCT245DW 1 9591923
IC6 XC9572 72-cell 3.3v CPLD VQ44 XC9572XL-10VQG44C 1 1605849
IDE1 40-pin IDE Header MA20-2 HEADER 40WAY 1 1099261
JP1, JP2, JP5, JP6, JP7 Jumper Header (cut for each) 2.54mm pitch HEADER, 1ROW, 14WAY 1 3418376 (10-pin) 3418303 (4-pin)
LED1 Activity LED 0805 LED, SMD, RED 1 1226389
R1,R2,R3,R4,R5, R7,R8,R9,R10 Resistor 0603 RESISTOR, 10KR, 0.1W, 5% 9 1469749
RN1, RN2 Resistor Network 0603 RESISTOR NETWORK, 10K, ± 2% 2 2060107
VR1 Voltage Regulator SOT-23-5 MIC5205-3.3YM5 1 1663083
- Jumpers - - 2 1740370
- ISA Bracket - Keystone 9202 1 4567699
- Panhead screws - SCREW MACHINE PHILLIPS 4-40X1/4 2 -

Notes:

  • JP4 and R6 aren't required; short IDE header pins 28 and 30
  • JP5 is needed only if a Disk-On-Module is likely to be used (to provide power via the header)
  • JP3 (IRQ) is not needed
  • R7 and the LED1 are needed only if activity indication on-board is required
  • R10 and associated 2-pin header JP7 are needed only if remote activity indication is required
  • SJ1 should be soldered closed if a 5V CPLD is used, otherwise left open

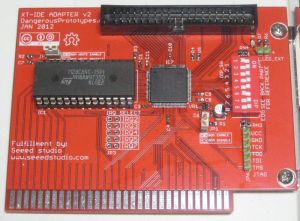

Version 2


The version 2 board is a sound design, with no modifications needed during construction.

Farnell BoM:

Part(s) Description Package Value Qty Required Farnell Code
C1,C3..4,C7..11 Ceramic Capacitor X7R 0603 0.1uF 8 1759123
C2 Electrolytic Capacitor Case C 47uF 1 1973276
C6 Ceramic Capacitor 0603 1uF 1 1833809
DIP_SW 8-way DIP switch DIL SWITCH, DIL, 8WAY 1 9471596
IC Socket IC Socket DIP-28 SOCKET IC, DIL, 28WAY 1 1103852
IC1 EEPROM (64k as 8K x8) DIL-28 28C64 1 1095784
IC7 XC9572 72-cell 3.3v CPLD TQFP100 XC9572XL 1 1193233
IDE1 40-pin IDE Header MA20-2 HEADER 40WAY 1 1099261
JP1, JP2, JP6 Jumper Header (cut for each) 2.54mm pitch HEADER, 1ROW, 10WAY 1 3418376
LED1 Activity LED 0805 LED, SMD, RED 1 1686066
R2..4 Resistor 0603 RESISTOR, 10KR, 0.1W, 5% 3 2008360
R6, R7 Resistor 0603 RESISTOR, 270R, 0.1W, 1%, 250mW 2 1738897
RN3, RN4 Resistor Network 1206 RESISTOR ARRAY, 10K 2 1770137
VR1 Voltage Regulator SOT-23-5 MIC5205-3.3YM5 1 1663083
- Jumpers - - 2 1740370
- ISA Bracket - Keystone 9202 1 4567699
- Panhead screws - SCREW MACHINE PHILLIPS 4-40X1/4 2 -

Notes:

  • JP5 is needed only if a Disk-On-Module is likely to be used (to provide power via the header)
  • JP3 (IRQ) is not needed
  • R7 and the LED1 are needed only if activity indication on-board is required
  • R10 and associated 2-pin header JP7 are needed only if remote activity indication is required
